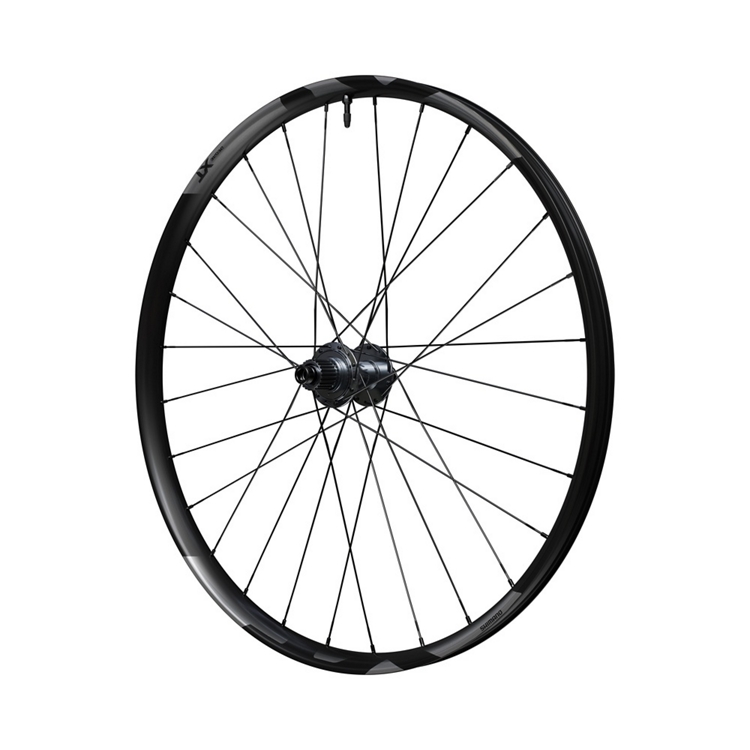

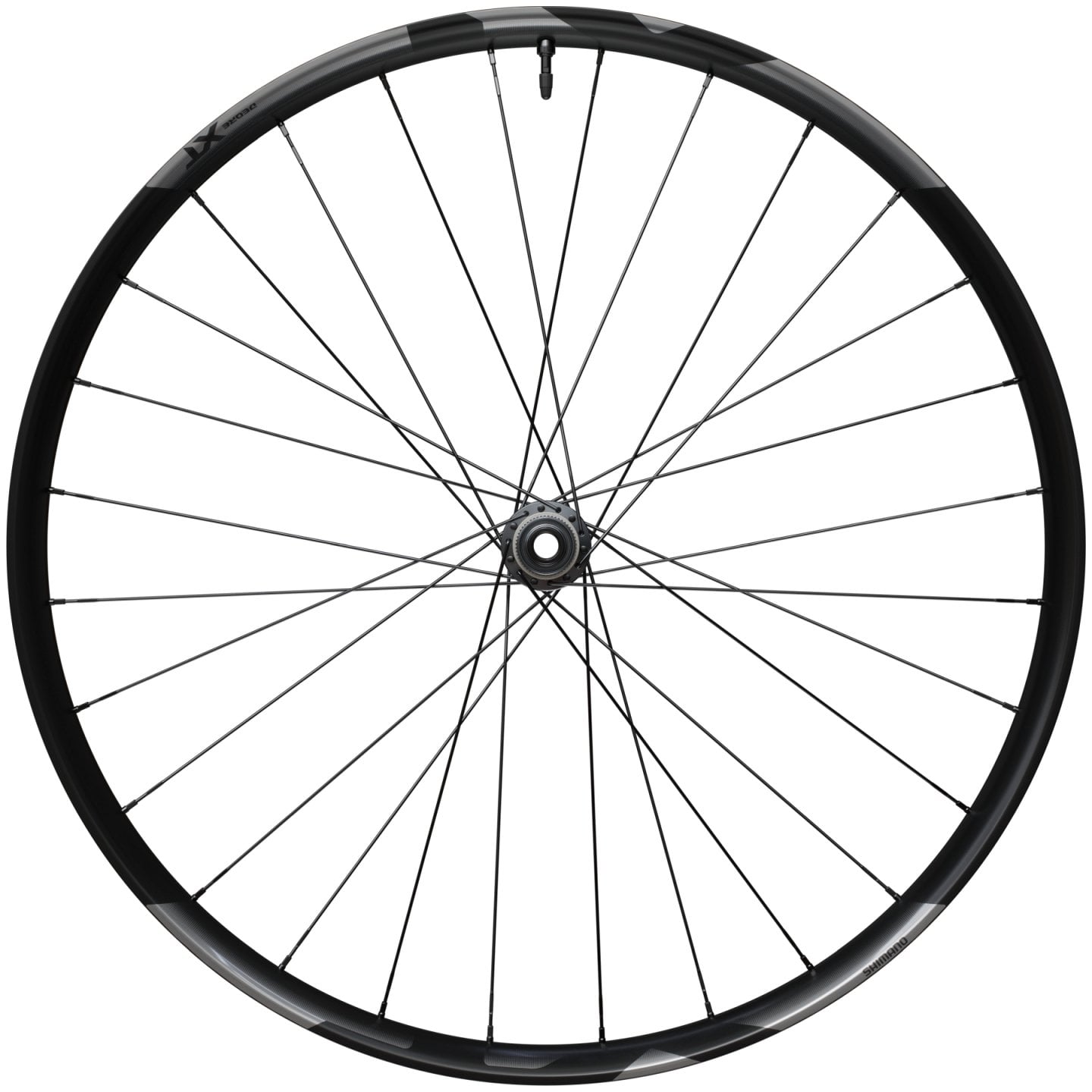

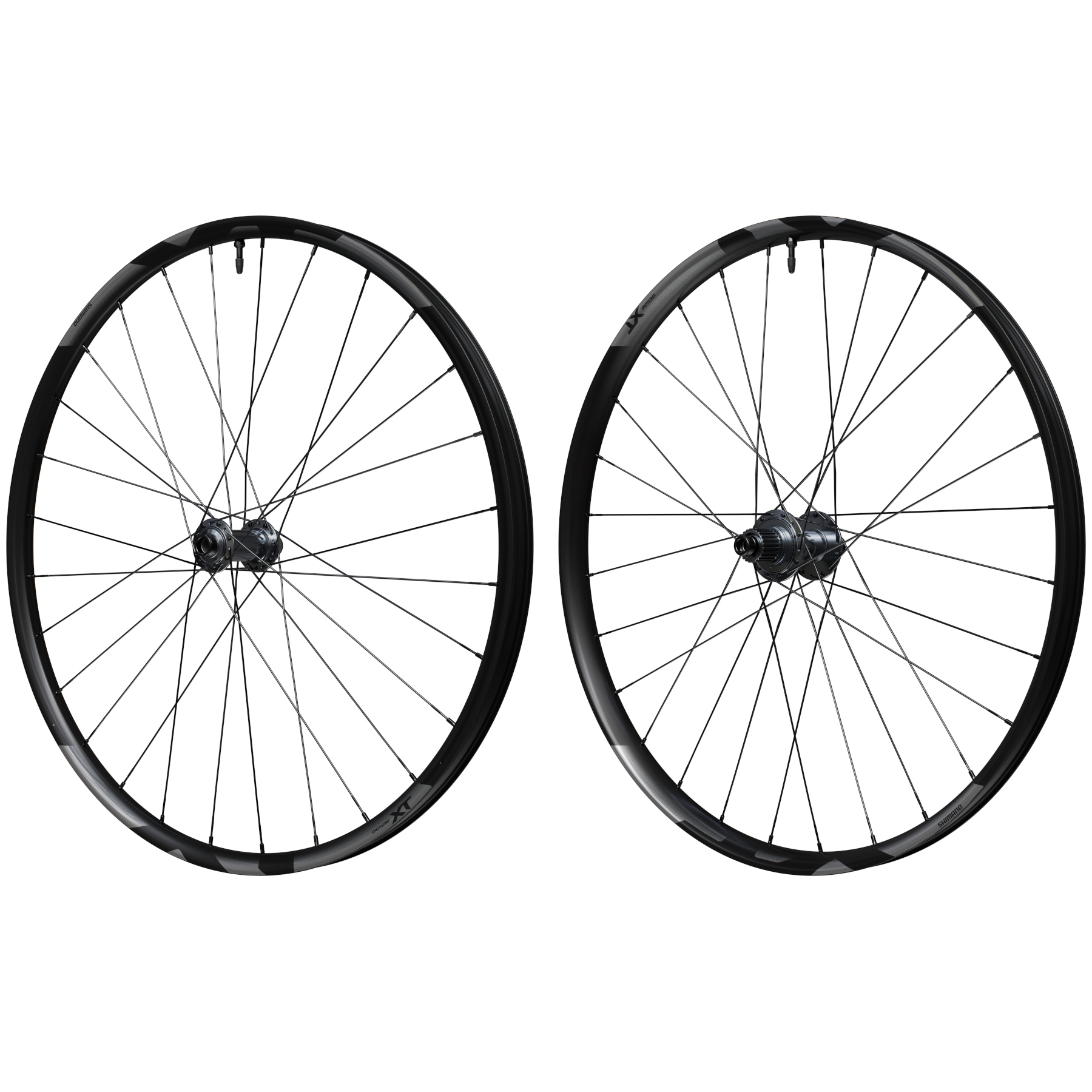

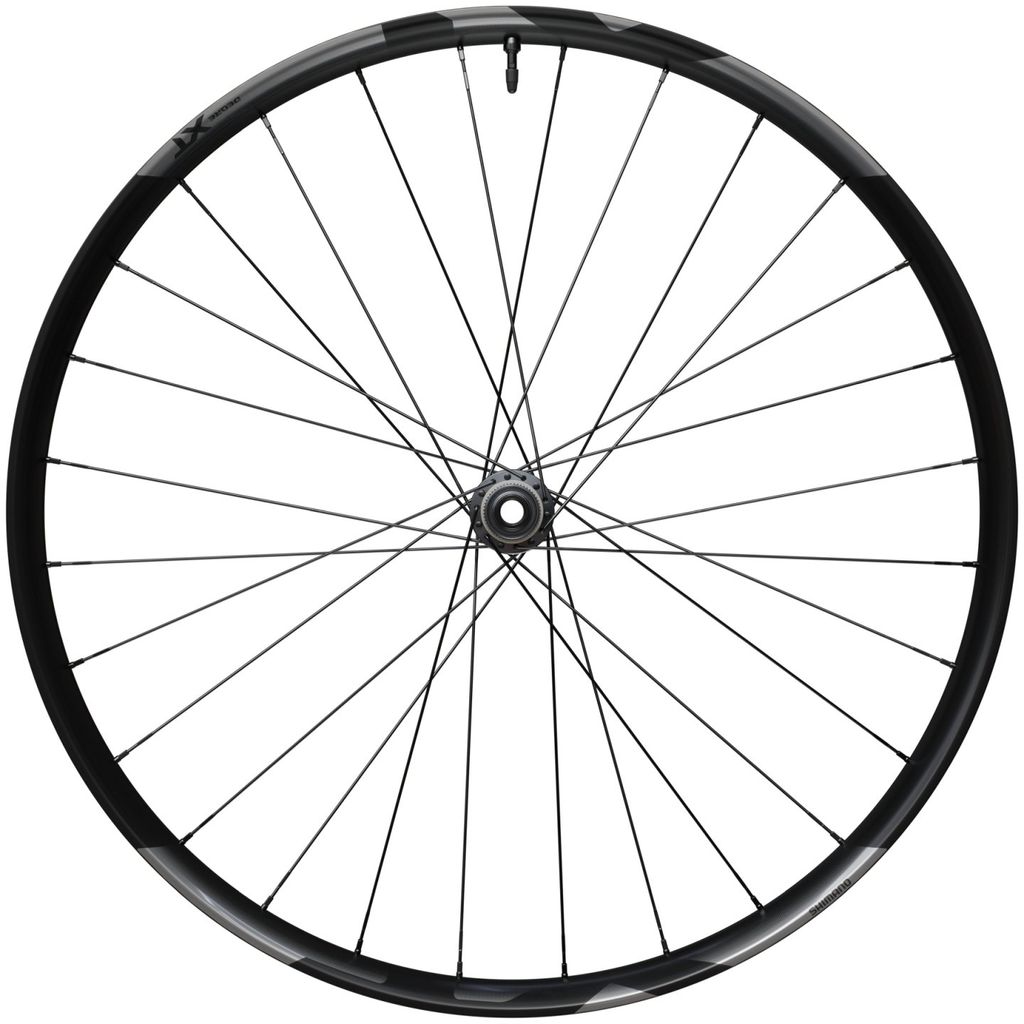

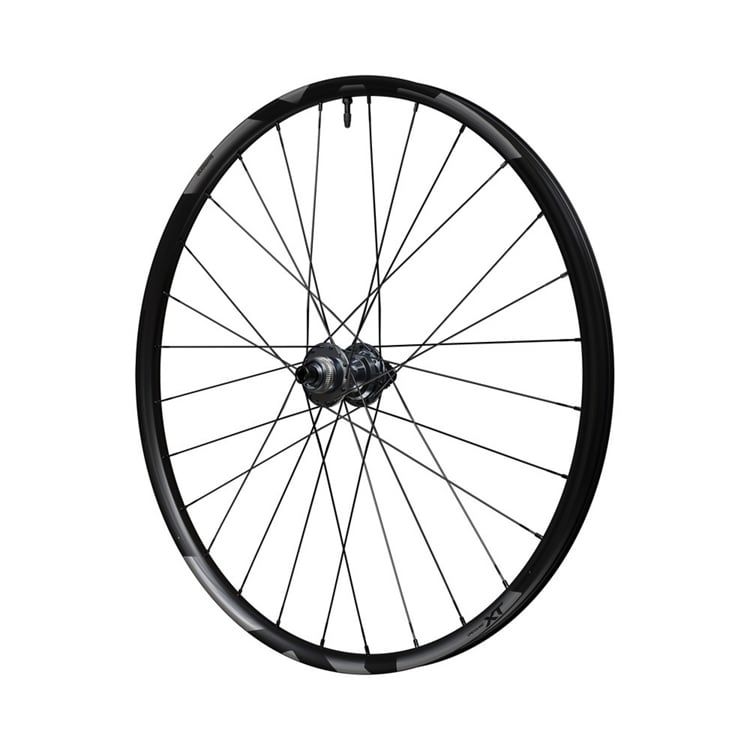

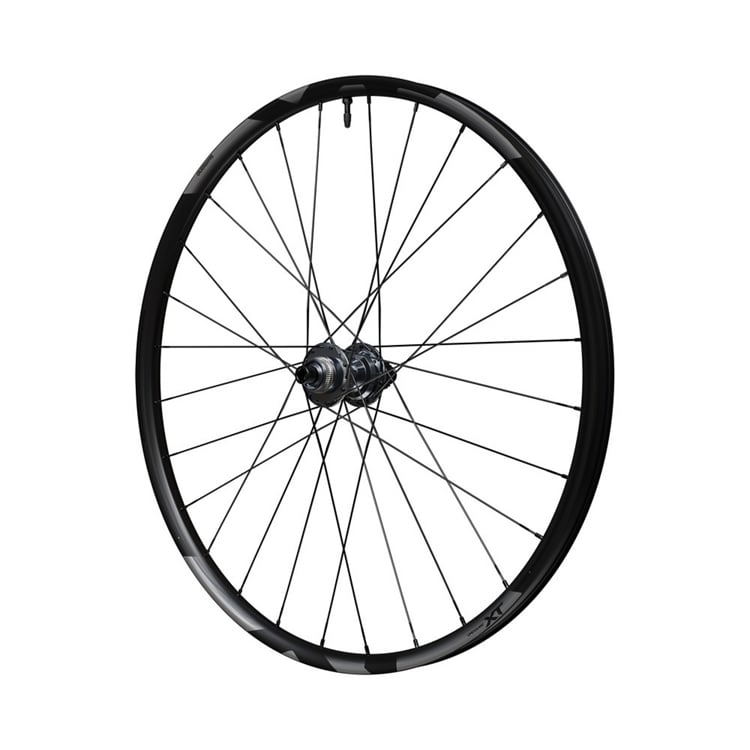

Technical details of the Shimano Deore XT wheelset
- rims: aluminum (painted)
- rim shape: hooked, asymmetrical (with offset)
- rim joint: welded
- tire type: Clincher, Tubeless compatible
- wheel size: 29 inch (700C)

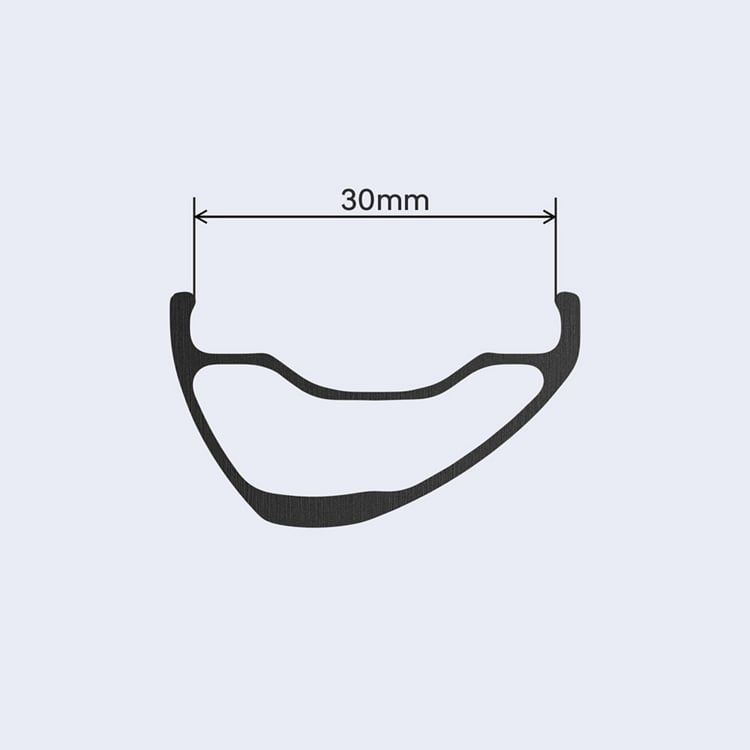

- outer width: 34.7 mm / inner width: 30 mm / profile height 19.8 mm
- recommended tire width: 2.3-2.6 inch

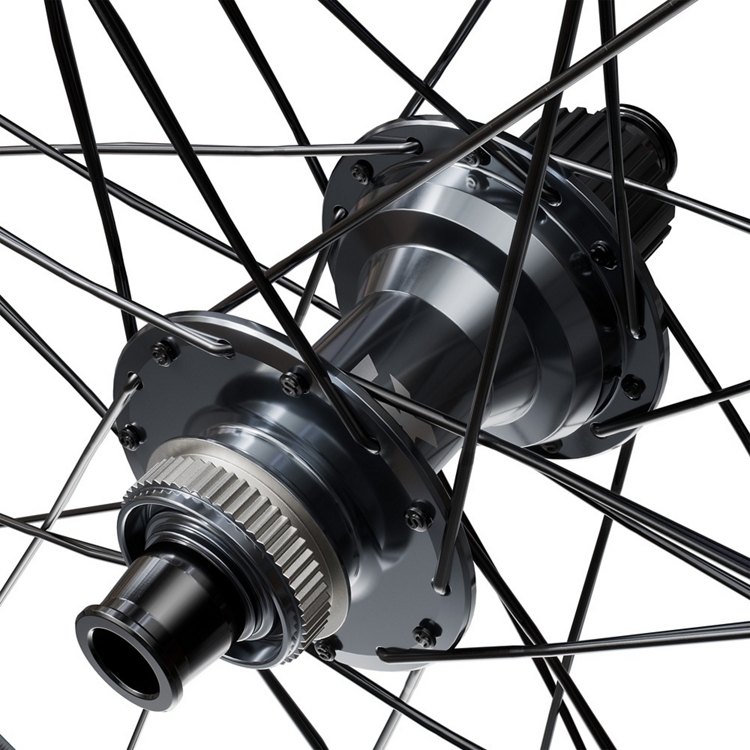

- hub shell, axles, freewheel body: aluminium (anodized)
- brake disc interface: Centerlock
- freewheel system: Direct Engagement (ratchet type, max. 3.5° pressure angle)
- bearings: cartridge type, steel (SUJ2), radial
- seals: labyrinth, contact
- installation dimension: 15 x 110 mm / 12 x 148 mm (thru axle, Boost)
- spokes: stainless steel / nipples: aluminum
- spoke shape: J-Bend, butted (2.0 - 1.8 mm)
- spoke count: 28 (each)
- weight: approx. 931 / 1052 g (front wheel / rear wheel; manufacturer's specification)
